उत्पाद विवरण:
|
| भाग संख्या: | आईआरएफ7501टीआर | उत्पादक: | इंफिनियोन टेक्नोलॉजीज |
|---|---|---|---|
| विवरण: | MOSFET 2N-CH 20V 2.4A MICRO8 | वर्ग: | ट्रांजिस्टर - FETs, MOSFETs - Arrays |
| परिवार: | ट्रांजिस्टर - FETs, MOSFETs - Arrays | शृंखला: | हेक्सफेट® |
| Part Status | Obsolete |
|---|---|
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A |
| Rds On (Max) @ Id, Vgs | 135 mOhm @ 1.7A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 260pF @ 15V |
| Power - Max | 1.25W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |

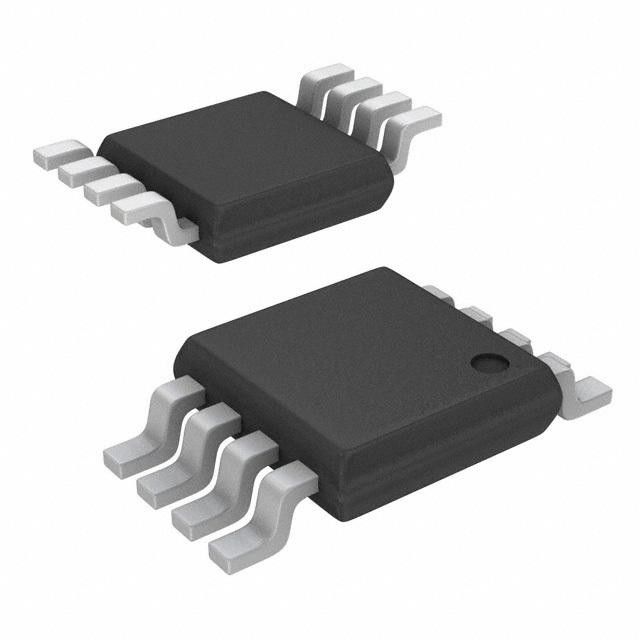

| Supplier Device Package | Micro8™ |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
