उत्पाद विवरण:
|

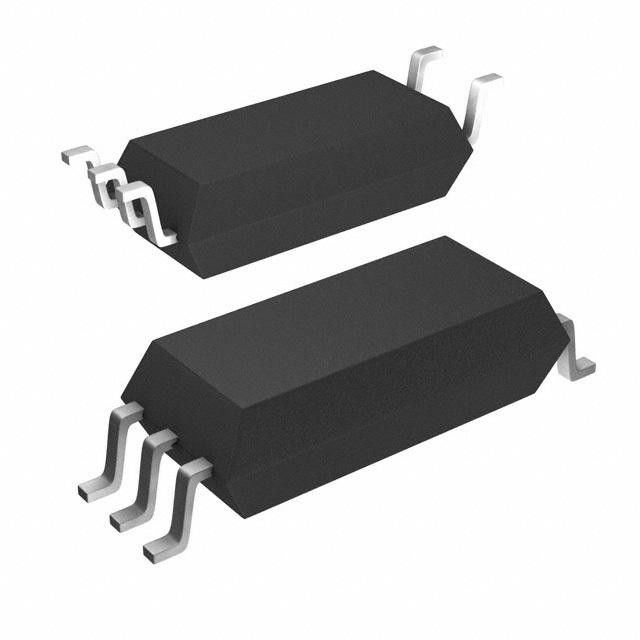

| भाग संख्या: | FOD8383R2V | उत्पादक: | फेयरचाइल्ड / सेमीकंडक्टर पर |
|---|---|---|---|
| विवरण: | OPTOISO 5KV गेट ड्राइवर 5SOP | वर्ग: | आइसोलेटर्स - गेट ड्राइवर्स |
| परिवार: | आइसोलेटर्स - गेट ड्राइवर्स |
| Part Status | Active |
|---|---|
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 210ns, 210ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 35ns, 25ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 3A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25mA |
| Voltage - Supply | 15 V ~ 30 V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.362", 9.20mm Width) 5 Leads |
| Supplier Device Package | 5-SOP |
| Approvals | IEC/EN/DIN, UL |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
